Spun Yarn Twister

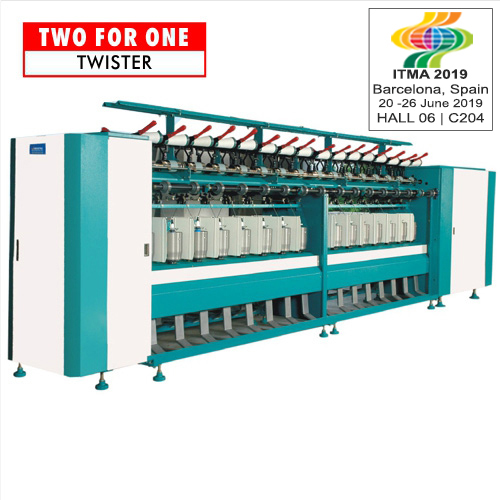

Meera Industries offer worldclass Two For One Twisters for spun yarn. The TFO twisting machines comprises a superior quality gear change system for all types of settings. Changing the spindle RPM of the machine isconvenient. For easier operation speed and length of the yarn is displayed. Speedy setting of spindle revolution rate and number of twisters is an added feature. It is environment friendly in the sense that it has a very low noise level.

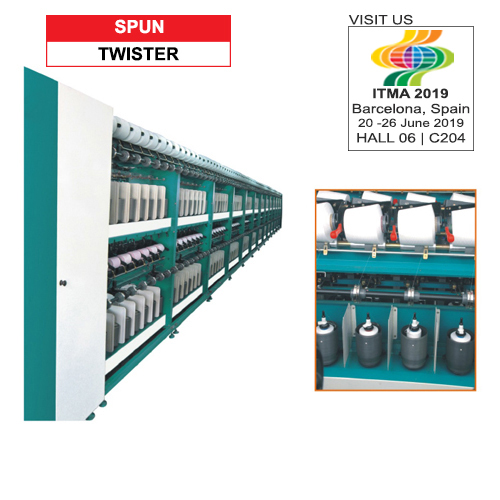

Pioneer of innovative idea of Double Deck concept in Spun Yarn Lowest power consumption per kg. of yarn

Features

New Concept to save the space requirement and energy saving by means of small spindle diameters.
Structure of very low noise level
Various models as per the need of different twist levels & energy saving concepts
Completely enclosed structure to avoid fluff contamination
Indivisual spindle braking
Low set up type due to modular design & machine
Automatic yarn stop & cradle lifting on yarn breakage

Application

2 or 3 Ply, PV, PES, Cotton, Woolen or any Spun Yarn
Any combination of spun & filament yarn

Technical Specifications

	S-120	S-130	S-140	S-165	S-260
NO. OF SPINDLES	208	208	182	182	104
NO. OF SPINDLES / SECTION	16	16	14	14	8
SPINDLE GAUGE IN MM.	225	225	260	260	525
POT DIA. IN MM.	120	130	140	165	210
COUNTER RANGE	2/20 to 2/100	2/16 to 2/100	2/10 to 2/100	2/10 to 2/100	2/2 to 2/20
TWIST RANGE TPI	7 to 70	7 to 70	7 to 70	2.5 to 50	0.5 to 25
MAX. SPINDLE SPEED (MECH.) RPM	14000	14000	13000	12000	6000
EFFECTIVE TWIST INSERTION	28000	28000	26000	24000	14000
SPINDLE DRIVE	Com. Tangential Belt	Com. Tangential Belt	Com. Tangential Belt	Com. Tangential Belt	Induvisual Motor / Com. Tangential Belt
STOP MOTION	Mechanical	Mechanical	Mechanical	Mechanical	Mech. / Elect.
WIDTH OF THE MACHINE MM.	800	800	800	800	1050
CONNECTED LOAD KW.	15	15	18	20	37

Feed Package

	S-120	S-130	S-140	S-165	S-260
CONE / CHEESE LENGTH MM.	172	172	172	172	290
MAX. OUTSIDE DIA. MM (C)	115	125	130	155	250
MIN. INSIDE DIA. MM (B)	33	33	33	42	42
WEIGHT GRAMS	650	750	900	1100	5000
CONICITY	3°30' / 4°20' or Cheese	3°30' / 4°20' or Cheese	3°30' / 4°20' or Cheese	3°30' / 4°20' or Cheese	3°30' / 4°20' or Cheese

Take-Up Package

	S-120	S-130	S-140	S-165	S-260
TRAVERSE MM (A)	152	152	152	152	254
CONE / CHEESE LENGTH MM.	172	172	172	172	290
MAX. DIA. MM (C)	250	250	250	300	400
WEIGHT (MAX) KGS.	2.5	2.5	2.5	3	5
CONICITY	3°30' / 4°20' / 5°57' or Cheese	3°30' / 4°20' / 5°57' or Cheese	3°30' / 4°20' / 5°57' or Cheese	3°30' / 4°20' / 5°57' or Cheese	3°30' / 4°20' / 5°57' or Cheese
