The fully ceramic pre-take-up roller, which is designed specially for elastic yarns, ensures optimum reduction of the take-up yarn tension in the traversing triangle.
GENERAL DATA | |
---|---|
COVERING TYPE | Double |
SPPINDLE GAUGE | 225 |
MAX. WORK SPEED | 20000 |
WHARVE DIAMETER | 25 |
SPINDLES DRIVE | Tangential belt |
RANGE OF WRAPS NO. PER MT. (SPPPINDLES) | 150 to 4500 |
TYPE OF FEEDING PACKAGE | |
COVERING YARN | Flanged bobbin type |
CORE YARN (IYCRA/RUBBER) | Bobbin width 115 max. or cone dia 220 mm. |
TAKE UP | |
NO. OF DECKS | 02 |
MAX. BOBIN DIA. | 180 |
TRAVERSE LENGTH | 152 mm. |
TUBE LENGTH | 172 mm. |
CYLINDRICAL TUBE DIAMETER | 63 mm. |
MAX. SPEED OF TAKE-UP | 60 m / min |

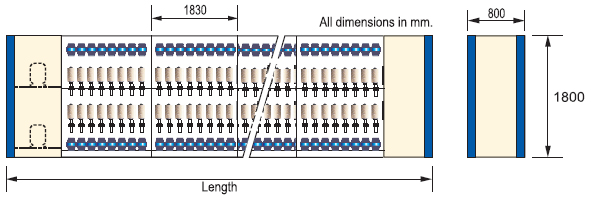

FRAME | |
SECTION LENGTH | 1830 |
MACHINE WIDTH | 700 |
MACHINE HEIGHT | 1800 |
Specification may be subject to change without prior notice. |
NO. OF SECTIONS | 10 | 11 | 12 | 13 | |
---|---|---|---|---|---|
NO. OF SPINDLES | 320 | 352 | 384 | 416 | Height |
LENGTH - METER | 20.15 | 21.98 | 23.81 | 25.64 | 2.1 |
LENGTH - FEET | 66'2" | 72'2" | 78'2" | 84'2" | 6'10" |
