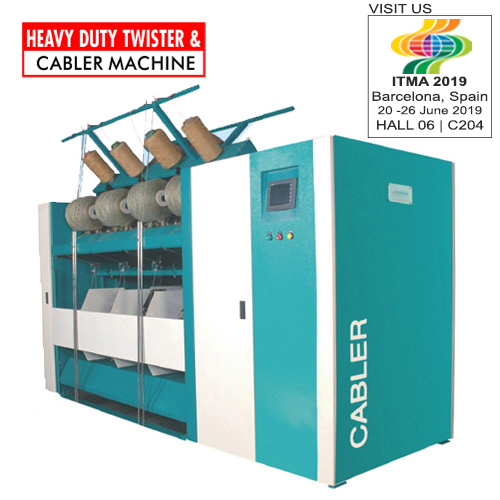

Heavy Duty Twister Cabler Machine

We at Meera specialized in yarn twisting technologies developing one by one different machine used for various application pioneered in offering carpet yarn manufacturing machines today. In continuation to this process, the market demands lead us to develop continuous yarn bulking and heat setting machine.




Features
  • Automatic spindle stop on yarn breakage
  • Servo driven traverse mechanism
  • Hysteresis tension device for uniform unwinding avoiding loop formation & twist fluctuation
  • Direct cabling process in two ply application
  • Low power consumption due to single yarn balloon
  • Double the knot less package compared to normal TFO twisting
  • Universal Spindle design enables easy conversion from the Two For One to the direct cabling process & vice versa
  • Delivery speed up to 120 mlmin.
  • Individual motor driven spindle to minimize power noise and maintenance
  • Overall saving in machine cost, labor cost & power cost by 50%
Application
  • Carpet yarn
  • Tyre cord
  • Single end BCF yarn
  • As high as 6000 denier with as low as 20 TPM

Technical Specifications

C - 190 / C - 210 C - 260 C - 260
TWIST RANGE 21 to 800 t/m 0.5 to 10 t/inch 21 to 800 t/m 0.5 to 10 t/inch 21 to 800 t/m 0.5 to 10 t/inch
COUNT RANGE 400 to 3000 denier x 2 (upto 6000) 400 to 3000 denier x 2 (upto 6000) 400 to 3000 denier x 2 (upto 8000)
SECTION PITCH 2130 MM 2130 MM 1830 MM
SPINDLE SPEED up to 8000 RPM up to 6000 RPM up to 6000 RPM
DELIVERY SPEED Max. 120m / min 120m / min Max. 120m / min
PACKAGE FORMATS Different tube / cone formats available on application Different tube / cone formats available on application Different tube / cone formats available on application
NO. OF SPINDLES(MAX.) 120 96 72
NO. OF SPINDLES PER SEC. 10 8 6
SPINDLE GUAGE IN MM 420 525 600
POT DIAMETER MM 90 / 210 260 260

Feed Package

C - 190 C - 210 C - 260
WINDING TRAVERSE 254 mm. 254 mm. 254 mm.
MAX. PACKAGE DIAMETER 180 mm. 200 mm. 254 mm.
MAX. TUBE LENGTH 290 mm. 290 mm. 290 mm.
MIN. TUBE BORE 57 mm. 57 mm. 57 mm.
NET YARN WEIGHT Approx 4 kg. Approx 5 kg. Approx 8 kg.

Take-Up Package

C - 190 C - 210 C - 260
WINDING TRAVERSE 254 mm. 254 mm. 254 mm.
MAX. PACKAGE DIAMETER 400 mm. 400 mm. 400 mm.
MAX. TUBE LENGTH 290 mm. 290 mm. 290 mm.
MIN. TUBE BORE 57 mm. 57 mm. 57 mm.
NET YARN WEIGHT Approx 8 kg. Approx 8 kg. Approx 12 kg.

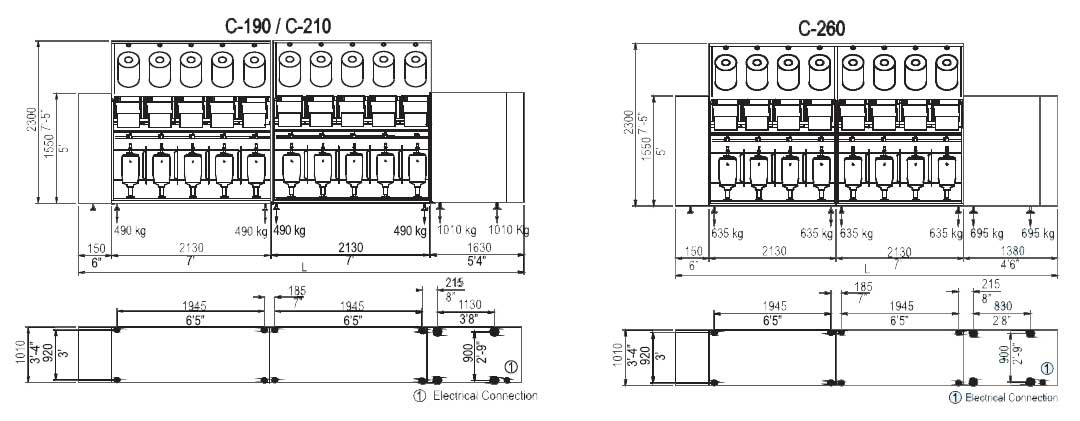

Dimentions
hdtcm-dimesion
