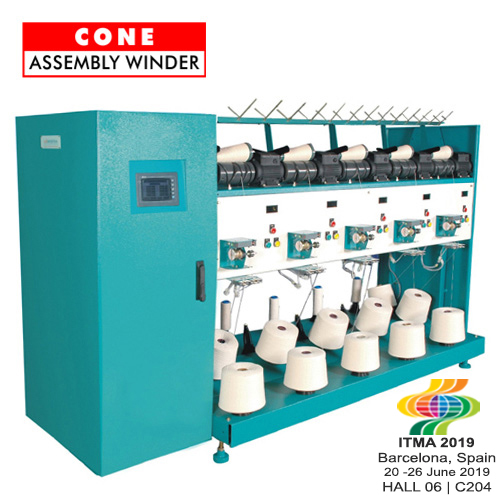

Cone To Cone Winder

We are the leading designers, manufacturers and suppliers of textile winding machines i.e cheese winder machine. The cheese winder encompasses an optical senser to avoid single yarn winding. These cheese winder machines have undergone strict surviellance of expets while manufacturing.

  • cone-to-cone-winder
  • cone-to-cone-winder
  • cone-to-cone-winder

  • 8" or 10" Traverse
  • Lubricating device
  • Electronic yarn clearer
  • Splicer
  • Overhead traveling cleaner
  • Overfeeder for soft winding

Technical Specifications

FRAME Single Deck both side

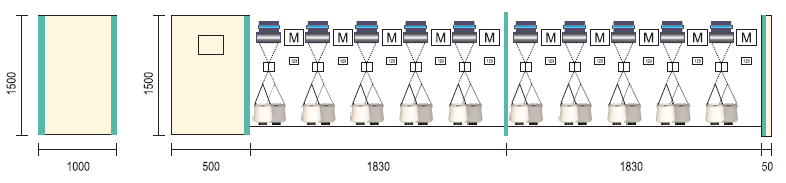

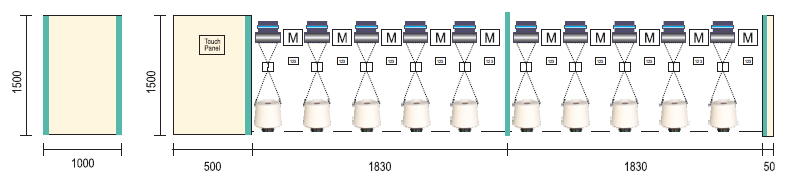

SECTION LENGTH 1830 mm. for 5 head having drum gauge of 360 mm.
SUPPLY PACKAGE Cheese or Cone up to diameter 250 mm.
TAKE UP PACKAGE 0 to 5 57’ Cone or Cheese of length 172 mm. & maximum diameter of 250 mm.
YARN SPEED 300 to 800 meters per min.
DRUM MOTOR 90 watt per drum
TENSION DEVICE Motor driven spring loaded washer tension devise
PARAMETER SETTING Count, Yarn type, Yarn speed, Preset length of yarn
CONTROL DEVICE Centralized PLC control with inverter drive for each section
TRAVERSE TYPE Anodized aluminum grooved drum.
LENGTH CONTROL Individual display on each drum in meter
YARN BREAK DETECTOR Optical sensor with heavy duty cutter.
